Acoustic Power Units

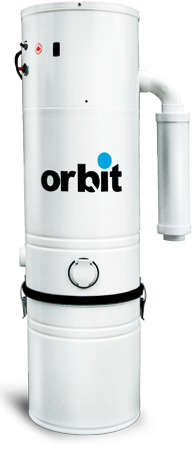

AU500 - PREMIER

Acoustic Power Unit

Excellent performance for average size single family homes up to 12,000 sq.ft. (120 m2).

Physical Dimension:

Height 40 inch (102 cm),
Diameter 14 inch (36 cm)

Performance:

2-Stage, 120v, 7.2" (182.88 mm) single speed, bypass with double ball bearings.
Air Watts: 650
Air Flow: 120 (Cubic Foot per Minute)
Water Lift: 142 inch H2

Features:

Bypass Blower Motor
Separate cooling fan system will maintain motor magnet and armature temperature vastly improving reliability.
Manual on/off switch
Printed Circuit Board Control Panel
Utility Port / Valve

Dual Intake Port

Construction:

All steel construction (Shipping Weight 34 lbs) with metal 16 liter (4 US gal.) dirt container.  On average it needs to be emptied twice a year.

Filtration:

Permanant Micro-Fiber polyester material with 99.98% Filtration Efficiency.

Finish:

Environmentally friendly Electrostatic Powder Coat durable Paint. All Orbit Power Units are guaranteed for life against corrosion perforation or any structural defect.
