Acoustic Power Units

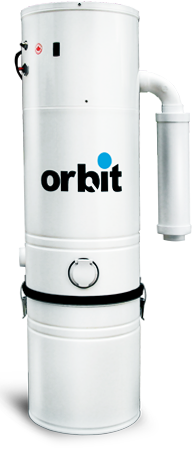

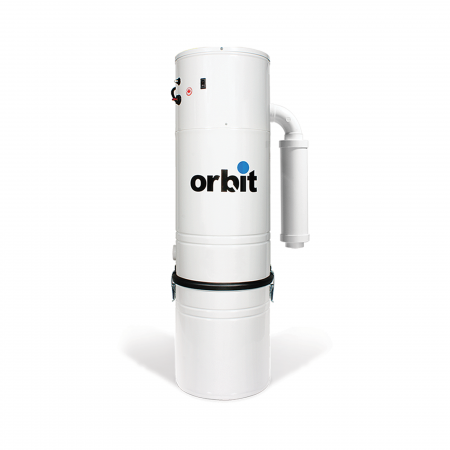

Acoustic Power Unit Superior performance designed for average size single family homes up to 3,000sq.ft. (300 m2). Physical Dimension: Height 40 inch (102 cm)Diameter 12 inch (30 cm) Performance:2-Stage, 120v, 5.7" single speed, Tangential Discharge, Bypass with double ball bearings.Air Watts: 550Air Flow: 121 (Cubic foot per minute)Water Lift: 125 inch H2O Features:Bypass Blower MotorSeparate cooling fan system will maintain motor magnet and armature temperature vastly improving reliability. Manual on/off switchPrinted Circuit Board Control PanelUtility Port/Valve Construction:All steel construction (Shipping Weight 34 lbs) with metal 20 liter (5 US gal.) dirt container. On average the Dirt Pail needs to be emptied twice a year only. Filtration:Permanent Micro-Fiber polyester material with 99.98% Filtration Efficiency. Finish:Environmentally friendly Electrostatic Powder Coat durable Paint. Orbit Power Units are guaranteed for life against corrosion perforation or any structural defect.
